What is an Automatic Block Making Machine?
An automatic block making machine is an advanced industrial manufacturing system engineered to mass-produce high-strength concrete products with minimal human intervention. By integrating mechanical drive units, hydraulic compression, and precise computer controls, this modern concrete block machine delivers exceptional production speed, exact dimensional accuracy, and maximum structural integrity to meet global construction standards.
Overview of Automatic Concrete Block Machines
Engineered for continuous heavy-duty performance, automatic block production equipment streamlines the entire manufacturing cycle from raw material feeding to finished product stacking.
- Multi-Functional Versatility: Produces hollow blocks, solid bricks, interlocking pavers, and curbstones by changing custom molds.
- Uncompromised Quality: Continuous, standardized compaction ensures uniform block density, high compressive strength, and clean edge profiles.
- Operational Efficiency: Drastically minimizes labor costs, reduces material waste, and dramatically accelerates daily production yields.
How Automatic Block Production Works
The automated block manufacturing process follows a seamless, synchronized workflow:
- Automated Batching & Mixing: Cement, aggregates, fly ash, and water are automatically proportioned and thoroughly blended to achieve optimal concrete consistency.
- Precision Material Feeding: A smart distribution cart delivers the exact volume of mixed concrete directly into the mold cavity.
- Hydraulic Pressing & Vibration: Powerful high-frequency vibration combines with heavy hydraulic pressure system force to eliminate air voids and tightly compact the mixture.
- Demolding & Automatic Stacking: The formed blocks are instantly demolded onto pallets and transferred via an automated conveyor system to the curing line.
Key Features and Advantages of Automatic Block Machines
We build equipment engineered for heavy daily output, maximum material density, and minimal manual intervention. Upgrading to our automatic block making machine lineup delivers distinct performance advantages designed to streamline your manufacturing plant.
High Production Capacity and Efficiency
- Fast Molding Cycles: Rapid molding speeds deliver completed cycles in as little as 15–20 seconds.
- Continuous Output: Heavy-duty structural framing enables 24/7 continuous operation to meet tight construction deadlines.
- Versatile Manufacturing: Easily swap molds to switch production between hollow blocks, solid bricks, and paver stones.
Advanced Hydraulic and Vibration System
Our high-performance hydraulic pressure system pairs with high-frequency synchronized vibration to deliver uniform density across every batch. Combining multi-directional hydraulic pressure with vibration forces air pockets out of the concrete mixture, producing blocks with exceptional load-bearing strength. When planning your production layout, consulting our concrete block machines operation and ROI guide can help align machine capabilities with your daily output goals.
Smart PLC Control Panel Operation
Every unit comes integrated with an advanced PLC control system featuring a user-friendly touchscreen interface.
| Control Feature | Operational Benefit |
|---|---|
| Automated Batching | Ensures exact material proportions and water-cement ratios |
| Real-Time Diagnostics | Detects faults instantly to minimize plant downtime |
| Recipe Storage | Saves custom settings for various block dimensions and concrete mixes |
Cost Reduction and Labor Savings
Automating your block production significantly lowers long-term operational costs while stabilizing product consistency.
- Minimal Labor Requirements: Cuts manual labor down to just 2 to 3 operators for the entire production line.
- Material Precision: Smart feeding mechanisms prevent raw material waste and guarantee dimensional consistency.
- Accelerated Payback: High volume output paired with lower overhead yields a fast return on investment. To better calculate your upfront capital needs, review our detailed concrete block machine price and cost guide for budget breakdowns.

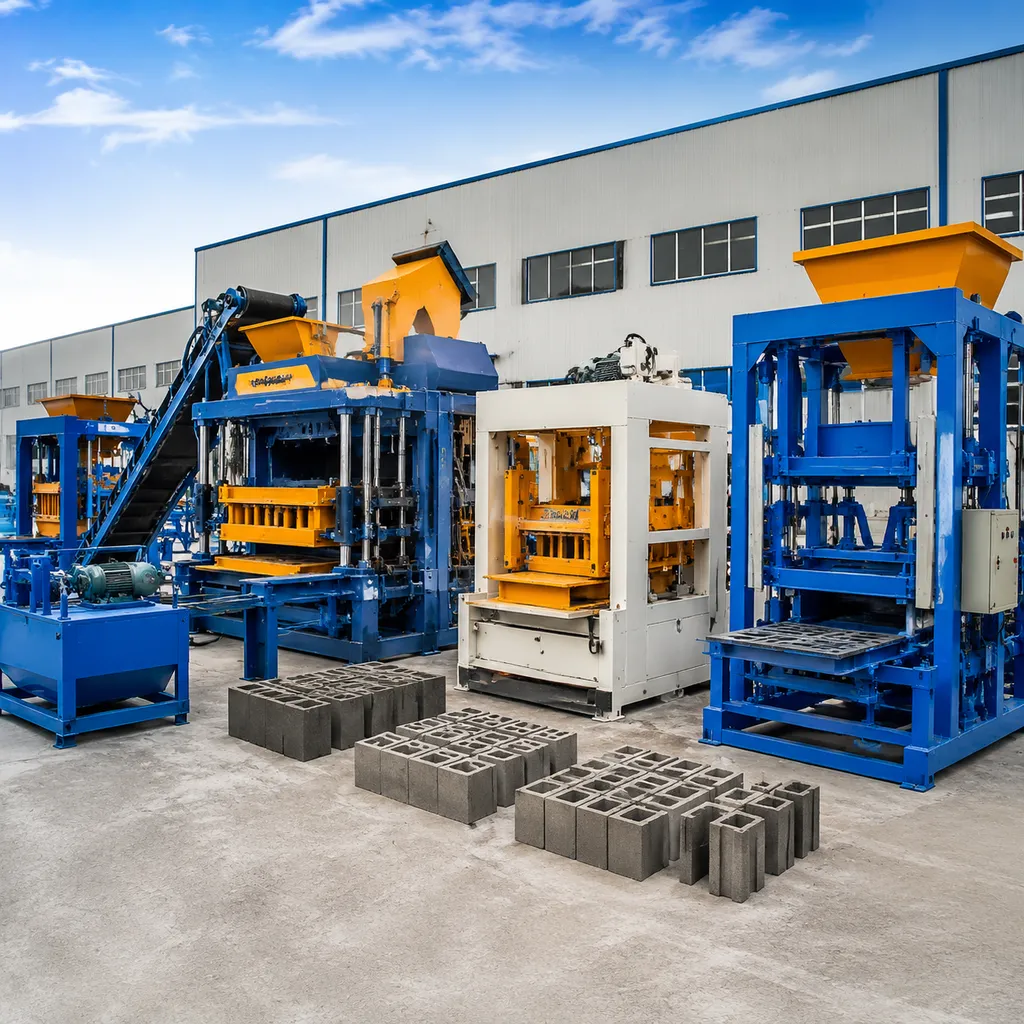

Main Types of Block Making Machines
We engineer a complete range of block manufacturing equipment tailored to different production scales, budget requirements, and operational setups.
Fully Automatic Block Making Machine
Built for large-scale commercial production, fully automatic systems handle batching, mixing, molding, and stacking without manual intervention. Models like our high-performance QT5-15 automatic cement brick making machine deliver non-stop continuous operation with maximum daily output and minimal labor overhead.
- Best for: High-volume commercial block plants
- Key advantages: Maximum production efficiency, lower labor costs, precise PLC control
Semi-Automatic Block Making Machine
Semi-automatic models offer the perfect balance between initial capital investment and operational efficiency. By combining automated hydraulic molding with straightforward manual material handling, a reliable semi-automatic block machine provides an ideal solution for growing concrete products businesses looking to expand capacity systematically.
- Best for: Small to medium-scale block manufacturers
- Key advantages: Lower upfront investment, simple operation, flexible production control
Automatic Mobile Concrete Block Machine
Designed for flexible on-site operations without requiring pallets, mobile block makers deposit finished products directly onto a solid concrete floor as they move forward. These units significantly streamline field operations by eliminating pallet management and raw material transport to offsite factories.
- Best for: On-site construction project production and field operations
- Key advantages: Pallet-free operation, reduced transport costs, high site mobility
Hydraulic Concrete Block Machine
Hydraulic block machines utilize high-pressure fluid systems combined with intense vibration to deliver extreme compaction force. This dual action guarantees superior structural density, low water absorption rates, and exceptional load-bearing strength across all produced units.
- Best for: High-density structural bricks, interlocking pavers, and heavy-duty blocks
- Key advantages: High compressive strength, precise block dimensions, stable long-term performance
Technical Specifications and Core Systems
We build every automatic block making machine using high-grade structural steel and synchronized sub-systems engineered for continuous industrial output.
| System Module | Core Feature / Spec | Operational Benefit |
|---|---|---|
| Hydraulic Unit | Proportional valve control (up to 21 MPa) | Delivers high block density with lower energy use |
| Vibration System | Multi-source high frequency (up to 4,500 RPM) | Ensures rapid compaction and maximum structural strength |
| PLC Controller | Touchscreen interface (Siemens / Schneider) | Automates cycle timing and real-time fault diagnostics |
| Feeding Mechanism | 360° forced-distribution rake | Guarantees fast, accurate mold filling without segregation |
Hydraulic Pressure System
Our heavy-duty hydraulic pressure system provides precise tonnage control throughout the molding cycle.
- Proportional Valve Tech: Automatically modulates pressure and fluid flow to execute smooth cylinder motions.
- Oil Cooling Integration: Radiator units maintain optimal fluid temperatures during 24/7 continuous runs.
- Uniform Compression: Applies equal pressure across all mold cavities to eliminate structural weak spots.
High-Frequency Vibration System
Compaction performance determines the final load-bearing capacity of every block.
- Synchronized Vertical Vibration: Dual-shaft vibrators generate intense vertical forces that purge trapped air pockets.
- Inverter Control: Allows operators to adjust vibration frequency based on aggregate sizes and moisture content.
- Direct Energy Transfer: Clamped mold tables maximize force transmission directly into the concrete mix.
Smart PLC Control System
Our integrated PLC control system runs the entire production line from material feeding to pallet discharge.
- Touchscreen Interface: Intuitive visual controls make setting pressure, cycle times, and speeds simple.
- Automated Diagnostics: Real-time sensor monitoring flags maintenance alerts to minimize unexpected downtime.
- Recipe Storage: Saves specific operational parameters for quick transitions between product lines.
Molding and Material Feeding Mechanism
Consistent raw material distribution into the mold cavities guarantees uniform weight and height across every batch.
- Forced Arch-Breaking Rakes: Rotating drive arms sweep dense aggregates evenly into every corner of the mold.
- Multi-Material Processing: Efficiently feeds standard concrete aggregates or alternative mixes outlined in our cement brick raw materials guide.
- Quick-Change Molds: Heat-treated alloy steel molds swap out quickly to switch between solid units, pavers, and units detailed in our hollow block making machine guide.
Applications and Types of Concrete Blocks Produced
Our automatic block making machine offers unmatched production versatility. By simply swapping out molds, a single unit supports a comprehensive range of civil, commercial, and residential construction needs.
Hollow and Solid Concrete Blocks
- Hollow Blocks: Engineered for structural framing, partition walls, and thermal insulation. They significantly reduce overall building weight while maximizing material efficiency.
- Solid Blocks: Essential for load-bearing walls, foundations, and heavy structural applications requiring maximum density and strength.
Our high-performance concrete block machine streamlines hollow block production and solid masonry output, ensuring precise geometry and structural integrity across every batch.
Paving Bricks and Interlocking Pavers
- Interlocking Pavers: Precision-molded pavers designed to lock together cleanly for driveways, parking lots, ports, and public walkways.
- Decorative Paving Stones: High-density, wear-resistant paving bricks available in custom colors and surface patterns for landscaping projects.
Our specialized paving stone configurations combine high hydraulic force and high-frequency vibration to achieve strict compressive strength standards. For detailed model specifications and applications, review our complete interlocking brick machine guide.
Curbstones and Building Bricks
- Curbstones: Heavy-duty municipal borders, road dividers, and garden edging built to withstand environmental weathering and heavy vehicular impact.
- Building Bricks: Uniform cement brick manufacturing solutions, including fly ash bricks and solid modular units designed for efficient everyday masonry work.
How to Choose the Right Automatic Block Making Machine
Selecting the right automatic block making machine for your facility comes down to matching long-term business goals with daily market demand. Explore our comprehensive guide to choosing a block making machine for a complete breakdown of configuration options.
Assessing Production Capacity Requirements
Before selecting equipment, establish clear daily production goals based on market demand:
- Target Output: Calculate your required unit count per 8-hour shift based on current market orders.
- Product Mix: Confirm if your production requires hollow blocks, solid bricks, or paving stones, as mold changeovers impact overall capacity.
- Future Expansion: Choose a structural frame capable of handling higher output demands as your operation grows.
Evaluating Automation Levels and Technical Features
Matching automation features to your plant layout drastically optimizes total operational cost:
| Technical Feature | Fully Automatic System | Semi-Automatic System |
|---|---|---|
| PLC Control System | Automated touch-screen operation | Manual or semi-automated controls |
| Labor Requirements | 2–3 operators required | 5–8 workers required |
| Hydraulic Pressure System | High-precision multi-stage pressure | Standard manual directional valves |
| Cycle Speed | Fast 15–20 second molding cycle | 25–35 second molding cycle |
Considering Cost, Maintenance, and Supplier Support
- Total Cost of Ownership: Look beyond the initial machine price—evaluate energy efficiency, hydraulic performance, and raw material usage.
- Component Availability: Ensure core parts like motors, valves, and PLC boards use internationally standardized brands for quick servicing.
- Supplier Services: Partner with manufacturers that offer complete installation guidance, operator training, and reliable ongoing technical support.
Frequently Asked Questions
What is the Capacity of an Automatic Block Machine?
Production output depends on block dimensions, mold configurations, and system cycle speeds. Our high-efficiency automatic block making machine models achieve rapid cycle times between 15 and 20 seconds, maximizing daily throughput.
| Block Category | Standard Dimensions | Daily Output (8-Hour Shift) |
|---|---|---|
| Hollow Blocks | 400 x 200 x 200 mm | 8,000 – 20,000 units |
| Solid Bricks | 240 x 115 x 53 mm | 40,000 – 100,000 units |
| Interlocking Pavers | 200 x 100 x 60 mm | 1,000 – 2,500 m² |
What is the Difference Between Fully and Semi-Automatic Block Machines?
The key differences lie in control mechanisms, labor costs, and product uniformity:
- PLC Control System: Fully automatic units feature smart PLC touchscreens for automated batching, feeding, and pressing. Semi-automatic models require manual control levers.
- Labor Needs: Fully automated plants run efficiently with 2–3 supervisors, whereas semi-automatic lines require 5–8 workers for pallet handling and material feeding.
- Structural Uniformity: Automated heavy-duty hydraulic pressure system integration ensures consistent compaction, delivering higher load-bearing strength across all blocks.
How Much Does an Automatic Block Making Machine Cost?
Total investment depends on capacity requirements, mold customization, and auxiliary machinery such as mixers, stackers, and batching plants:
- Entry-Level / Mobile Units: $10,000 – $35,000
- Mid-Range Automatic Concrete Block Machine: $35,000 – $90,000
- High-Capacity Fully Automatic Production Lines: $90,000 – $250,000+
Feel free to contact us to get a detailed quotation tailored to your specific target capacity and factory layout.
