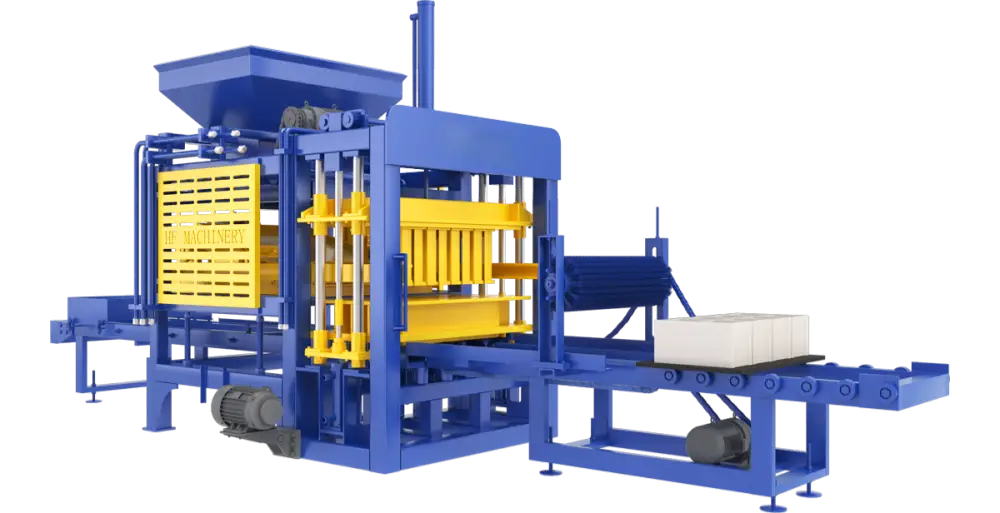

QT4-15 Automatic Brick Making Machine

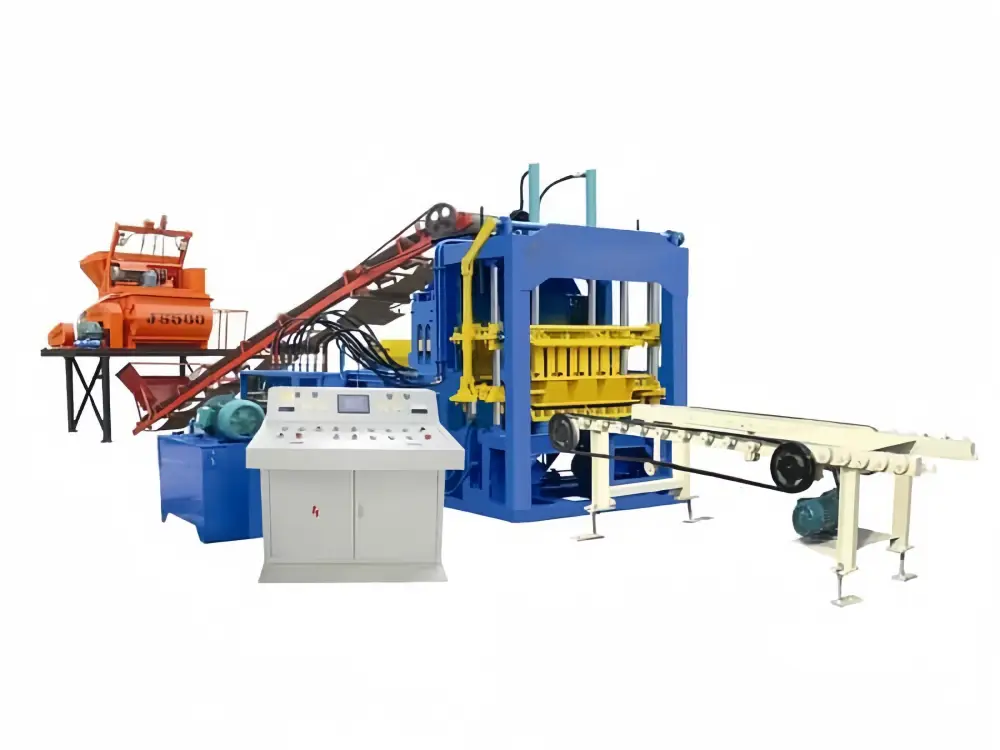

Introduction to QT4-15 Automatic Brick Making Machine
QT4-15 automatic block making machine is the best quality, design, and the absolutely competitive price. Our Block making machine adopts famous brand electrical parts, such as Schneider to ensure the good quality of the machine.
QT4-15 Block Making Machine is one leading in China. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. and to fulfill strictly ISO 9001:2008 and CE standard. Lontto Block Making Machine has been sell in South Africa and Malaysia, Russian, Saudi Arabia, Chile, Peru, Uganda and so on.
Advantage of QT4-15 Brick Making Machine
This Construction Concrete Hollow Block Making Machine features a high-efficiency, strong vibration system. It enables vertical synchronous vibration, frequency conversion, and braking.
The machine frame uses super-strength steel. It features special welding technology and widely incorporates imported elements.
The process uses a PLC control system along with a human-machine interface. This makes it easy to analyze the chance signal.
The multi-line whipping forks are fixed inside the material feed box of the special loading and supply unit. The whipping forks push the material into the mold box as the feed box moves up.
Recycle material feeding system: Economize in material for different or same density products.
The machine frame uses super-strength steel and special welding technology. It also includes many imported parts. This design ensures the machine’s stability and reliability over long-term use.
Hydraulic parts and seals in the hydraulic pressure system come from Japan or Taiwan. They help prevent pressure discharge or leakage.
Multi-use; Strong performance; The many kinds of products with different form and size can be made when using the difference mold, such as wall block, honeycomb type block, roadblock and slope block
Jet Mill Working Principle
Fluidized Bed Opposed Air Jet Mill: After the compressed air is filtered and dried, it is sprayed into the grinding chamber at high speed through the Laval nozzle. At the intersection of multiple high-pressure airflows, the materials are repeatedly collided, rubbed, and sheared to be crushed. The crushed materials rise with the suction of the fan. The airflow moves to the classification zone. Under the action of the strong centrifugal force generated by the high-speed rotating classification turbine, the coarse and fine materials are separated. The fine particles that meet the particle size requirements enter the cyclone separator and dust collector through the classification wheel for collection, and the coarse particles descend to the crushing zone and continue to be crushed.
Jet Mill Product Parameters
| Raw Material | Sand, Cement, Fly Ash, Concrete, Boiler Slag, Mountain Flour, Industrial Waste. |
|---|---|
| Usage | To Produce Hollow Block, Solid Brick, Porous Block, Paving Brick, Interlocking Brick and Paver Through Exchange the Mould |
| Pallet Size | 1020×570×30mm(Wood Pallet) 1020×570×20mm(PVC Pallet) |
| Hydraulic Pressure | 16MPA |
| Exciting Force | 380KN |
| Forming Cycle | 15 Seconds |
| Vibration Type | Table Vibration |
| Power | 27.5kw |
| Vibration Frequency | 4600/min |
| Workers | 5 Persons |
| Land Area | 1000m² |
| Weight | 8600KG |
| Block Machine Size | 6800×1650×2450mm |

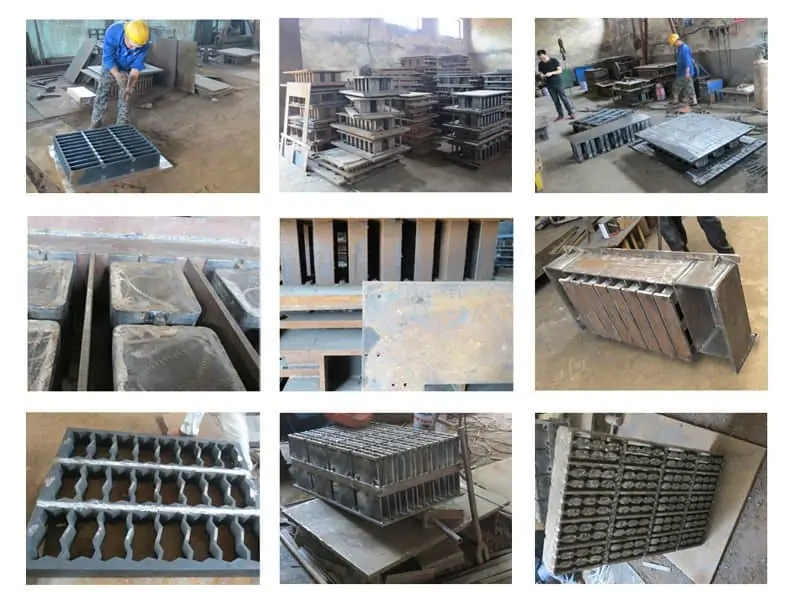

Block Mould of QT4-15 Block Making Machine
FAQ: QT4-15 Block Making Machine
It typically works with cement, sand, stone powder, fly ash, gravel, and water to form different types of concrete products.

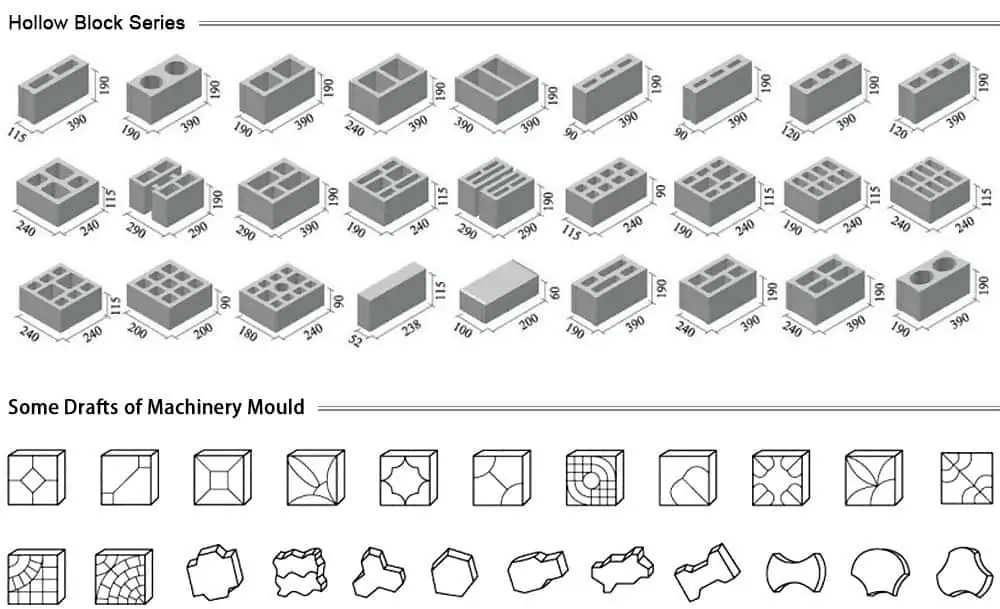

It can produce hollow blocks, solid blocks, paving blocks, interlocking bricks, fly ash bricks, and other customized concrete products by changing molds.
Yes, the QT4-15 is generally described as a fully automatic block making machine with PLC control and hydraulic operation.
Capacity depends on the block size and configuration, but one specification lists about 4 pcs of 400x200x200mm blocks per mold and 5,760 to 7,680 pieces per 8 hours for hollow blocks.
One listed molding cycle is around 15 to 20 seconds, depending on the machine version and block type.
Yes, the QT4-15 supports interchangeable molds, allowing the machine to produce different block shapes and sizes for various market needs.
Yes, it is designed for medium to high-capacity production and is widely promoted for construction material plants, building projects, and commercial block manufacturing.
